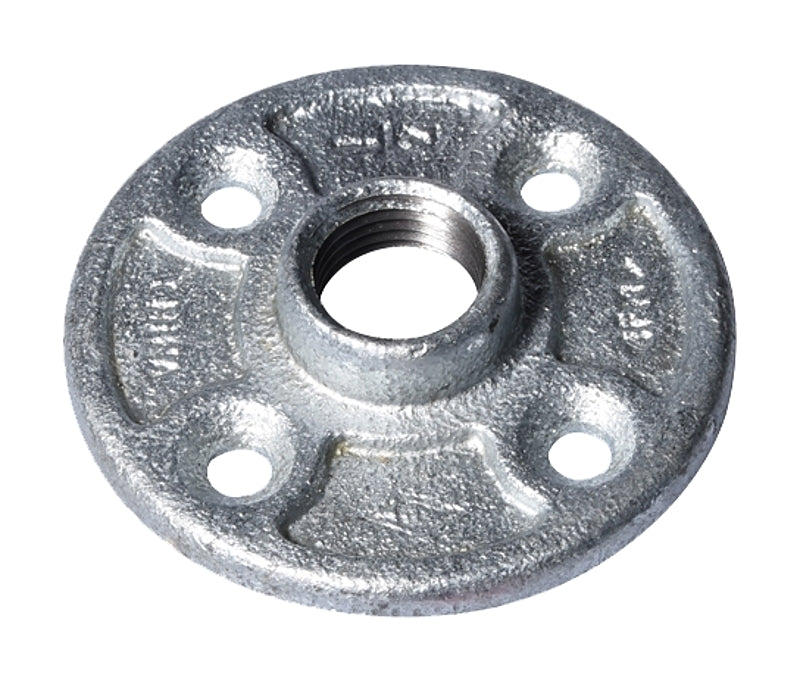

Worldwide Sourcing 27-1/2G Floor Flange, 1/2 in, 3 in Dia Flange, FIP, 4-Bolt Hole, 0.28 in, 7 mm in (mm) Dia Bolt Hole
| Unit of Sale: | EA |
| Brand: | Exclusively Orgill |
| Model: | 27-1/2G |
| UPC: | 045734102439 |
| Country of Origin: | CN |
go6102438
The galvanized floor flanges are made from malleable iron for tensile strength. Its galvanized finish resists rust in water, air, and steam applications.
Application: For steam and water working pressure up to 150 psi
⚠ California Prop 65 Warning: Components of this product contain chemicals known in California to cause cancer and birth defects or other reproductive harm:
- Lead
| Bolt Hole Diameter: | 0.28 in 7 mm in (mm) |
| Color: | Galvanized |
| Connection Type: | FIP |
| Face Type: | With Bolt Holes |
| Flange Diameter: | 3 in |
| Length through Bore: | 0.55 in |
| Material: | Malleable Iron |
| Maximum Pressure: | 300 psi |
| Nominal Size: | 1/2 in |
| Number of Bolt Holes: | 4 |
| Operating Temperature: | 4 to 572 (-20 to 300) deg F (deg C) |
| Suitable for: | For Securing Pipe to Wall or Floor Mounts |
| Package Length: | 18.5" |
| Package Width: | 12.59" |
| Package Height: | 9.44" |
| Shipping Weight: | 0.354 Pounds |
